UCAB232i

SKU 14.001.UCAB232I

SU ORDINAZIONE

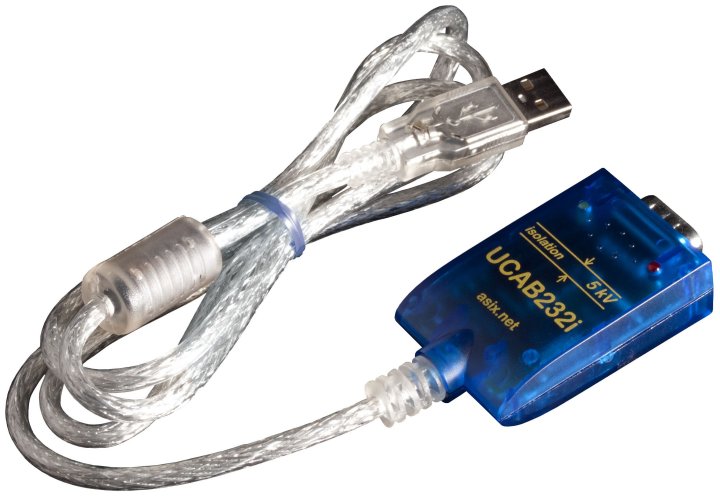

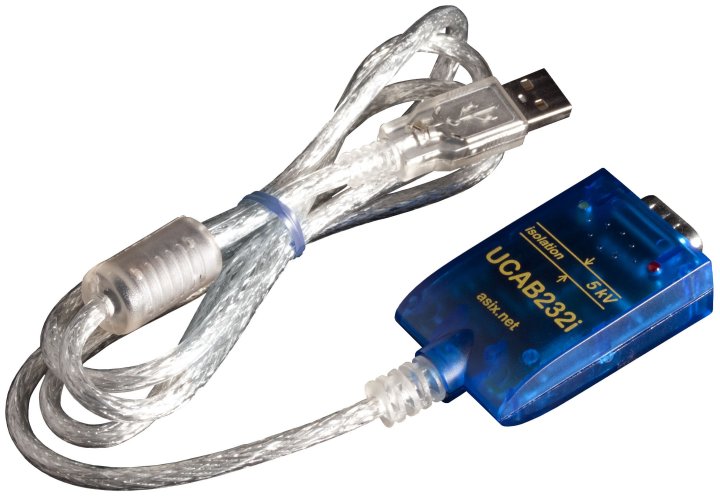

USB to RS232 Conversion Cable
with 5 kVolt galvanic isolation

UCAB232i is a USB to RS232 converter with 5 kVolt galvanic isolation. It is based on the FT232R chip by FTDI which ensures the best compatibility with most industrial and commercial applications.

Features

• Full RS232 implementation
• 9-pin D-Sub male connector
• Inputs with improved immunity to interference suitable for industrial applications
• High communication speed
  • 250 kBaud guaranteed
  • more than 500 kBaud typically
• Unrivalled galvanic isolation
  • 5000 V DC / 1 sec.
  • 2600 V AC / 1 min.
  • 560 V RMS / no limit
• Enhanced ESD protection of all inputs
  • ±15 kV air discharge HBM
  • ±8 kV contact discharge HBM
• Extended temperature range -40 °C to +85 °C
• Enhanced durability to environmental influences
• USB 2.0 Full Speed (12 Mbps)
• LED indication for transmission and reception
• Drivers for Windows 98SE/2K/ME/XP/Vista/7/8/8.1/10/11 (both 32 and 64 bit), Linux and Mac OS
  • For OEM application, proprietary ID can be used
• Small and compact enclosure

• PREZZI COMPRENSIVI DI IVA
