SKU MD0630T01A

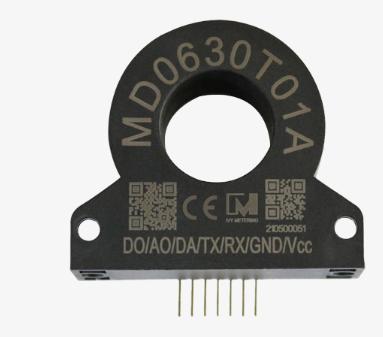

MD0630T01A 30mA AC 6mA DC RCD Residual Current Detection Leakage Current Sensor with UART Modbus

Product Features

1. Operates from a 12V DC supply

2. Type B(Including Type AC/A/F) leakage currents detection

3. Small Size, Integration Design, Vertical(PCB/Pin Type) Mount

4. AC DC Leakage Alarm Value Setting; High and Low Level Digital Signal(Push-pull Output)

5. With UART Comm&Modbus Protocol; Standard: EN 61000-6-3:2007+A1, EN IEC 61000-6-1:2019

6. CE/TUV Certified; Complies with the DC protection requirements of IEC62955

7. Electrical Safety at cost-effective (Compared to Type B RCCB)

Product Parameters

• Wide voltage input: 12V±20%

• Measuring current range: DC current 2-15mA; AC current 3-100mA (default threshold: DC 6mA, AC 30mA)

• Accuracy class: at 25℃, DC±0,2mA, AC±0.3mA

• Working environment temperature: -25℃～+80℃

• Installation: Pin Type

• Plastic casing: SIP encapsulation
