SKU IPM-165

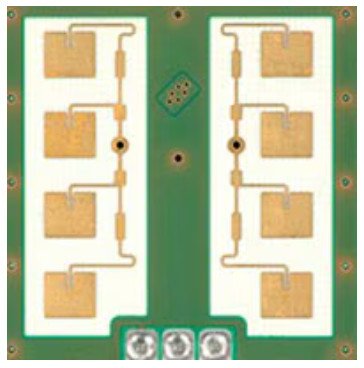

IPM-165 Analog Radar Module

InnoSenT GmbH IPM-165 compact and simple radar sensor solution for movement detection

Since the product launch of InnoSenT GmbH's IPM-165 in 2003, the 24 GHz ISM band sensor has been consequently developed and optimized. At that time it was the smallest radar sensor available worldwide. Today it still has a very compact design making it an ideal fit as an integrated motion sensor. It is still a standard and widespread radar device for movement detection. The main application is to trigger an automated technical process (e.g. automated door opener) in case of recognizing a movement within the field of view. It is a low-cost K-band transceiver for security and building automation applications with a detection range of less than 10 meters.

The simple CW-Doppler radar comes with an asymmetrical wide beam to detect moving objects. It can be hidden behind a cover or integrated in a housing. It features separate transmit and receive antennas for maximum gain. The IPM-165 is available in different frequency trimmings for worldwide use. It is equipped with an advanced LCO-oscillator with low current consumption.

The IPM-165 is part of the InnoSenT IPM series. Also available is the IPM-365 radar sensor, which is the 3 V power version for battery use of the IPM-165.

IPM-165 Application Notes

• Velocity measurement
• Operates in 24 GHz ISM band
• CW doppler radar module
• Low-cost K-band transceiver
• Different frequency ranges available

• Low current consumption
• Compact outline dimensions
• Certified and approved according to RED 3.1a, 3.1b + 3.2, ETSI EN 300 440-1 V1.5.1, ETSI EN 300 440-2 V1.3.1, FCC part 15.245, IC RSS-210 Issue 8, and Telec RSS210 Issue 7

• Motion detection
• Radar-based speed measurement
• Automated door opener
• Vibration monitoring

• Light control
• Motion controlled sanitary devices
• Alarm systems
• Application fields: building technology, security, smart home, and home automation
