RFBEAM K-LD7

SKU K-LD7

K-LD7 is a fully digital low cost Doppler radar that can measure speed, direction, distance and angle of moving objects in front of the sensor. The digital structure and wide power supply range make it very easy to use this sensor in any stand-alone or MCU based application.

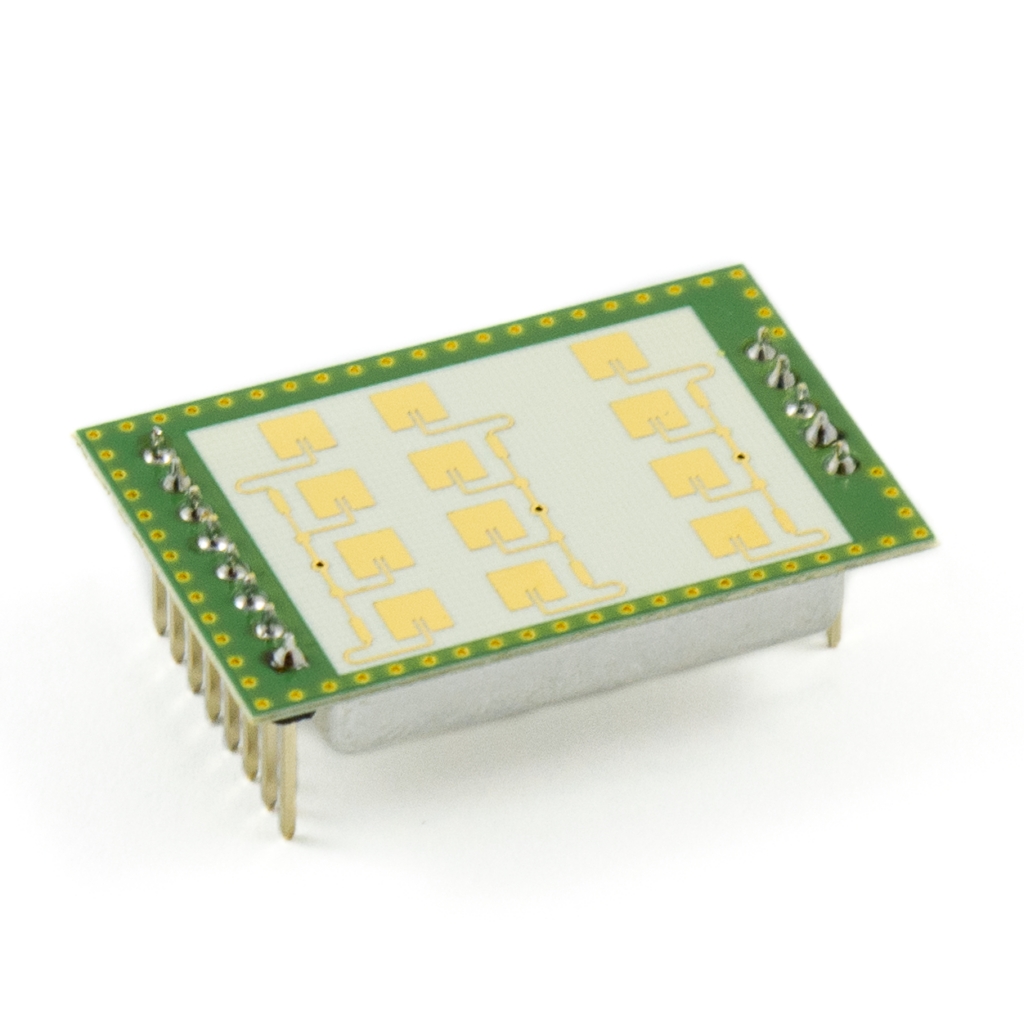

The sensor includes a 3 × 4 patch antenna radar front-end with an asymmetrical beam and a powerful signal processing unit with four configurable digital outputs for signal detection information. A built-in tracking filter makes the sensor output even easier to use. The serial interface features the possibility to read out a target list with speed, direction, distance and angle information of all moving objects in front of the sensor or to digitally configure the sensors detection parameters.

There is no need to write own signal processing algorithms or handle small and noisy signals. This module contains everything what is necessary to build a simple but powerful motion detec-tor with distance and angle information.
